Lyle® PV | PVT-Series
VERTICAL TRIM PRESSES

Trim Vertically Stacked Products with Precision and Efficiency

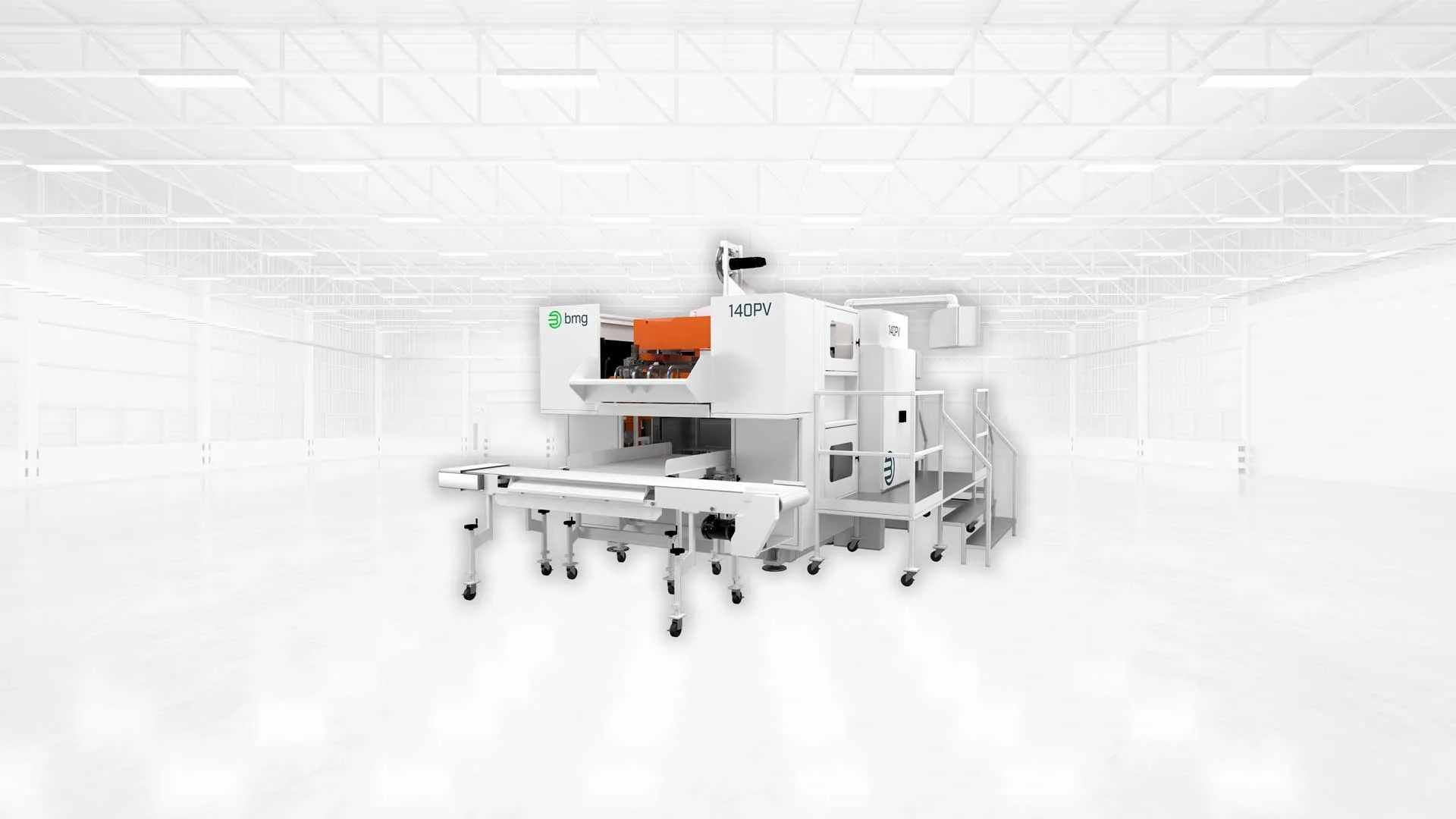

The PV and PVT-Series vertical trim press is a versatile machine that can be used for pre-punching, scoring, or final trim applications. The vertical set-up is perfect for parts that don’t stack as well horizontally, and provides the added benefit of accurate counting and product handling.

The unique servo-driven nip feed ensures accuracy and properly locates parts for trimming while the pull-down trim design enables the press to handle the heaviest cutting requirements. Combined with quick tool change capabilities and PLC control of all functions, the PV-Series trim press delivers precision and efficiency, so you can Run with Confidence!

DOWNLOAD SPEC SHEET

Benefits of Our Packaging Solutions

Pre-punching, Scoring, or Final Trim Applications

Accurate Counting and Product Handling

Handles the Heaviest Cutting Requirements

Quick Tool Change Capabilities

Precision and Efficiency

Machinery Features:

Versatile, Precise Controls

Standard with Informer™ series Mitsubishi control system

Easy Access to Tools

Allows quick tool change for efficient operation

Versatile

Pre-punching, scoring or final trim applications

Efficient

Ideally suited for product handling applications

Precise

Exclusive pull-down trim design utilizing precision linear bearings to ensure optimum parallelism

Machine Options:

Product Accumulator

Versa-Servo Feed

Servo Driven Ejector

Product Handling Lift Table

Quick-Change Feed Guides

Quick-Change Tool Package

Skeleton Web Take-Away System

Pressure Plate Scoring System (PVT)

UL, CE, CSA & HSE Approvals

International Voltages Available

Lyle® PV | PVT-Series Specifications
  130 140 152 165
Maximum Trim Tonnage 15 tons
133 kn
30 tons
267 kn
35 tons
312 kn
50 tons
446 kn
Operating Speeds Up to 100 spm Up to 100 spm Up to 100 spm Up to 100 spm
Machine Stroke 9"
229mm
9"
229mm
9"
229mm
9"
229mm
Stationary Platen Opening*
(Width x Length)
13.5" x 30.5"
343mm x 775mm
13.5" x 40.5"
343mm x 1029mm
16.5" x 52"
419mm x 1321mm
16.5" x 65"
419mm x 1651mm
Maximum Sheet Width 34"
867mm
44"
1118mm
56"
1422mm
69"
1753mm
Air Consumption @ 80 psi† .01 scf maximum per cycle .01 scf maximum per cycle .01 scf maximum per cycle .01 scf maximum per cycle
Feed System Nip Wheel Standard Nip Wheel Standard Nip Wheel Standard Nip Wheel Standard
Pre-punch Capability Yes Yes Yes Yes
Final Perimeter Trim Capability Yes Yes Yes Yes

*Larger platen openings available
†Air consumption does not include tooling functions
